Effective Visualizations

James Normington, PhD

Announcements

  • Assignment 2 due tomorrow at 11:59pm!

Learning Goals

  • Understand and apply the guiding principles of effective visualizations

Benefits of Visualizations

Visualizations help us understand what we’re working with:

  • What are the scales of our variables?
  • Are there any outliers, i.e. unusual cases?
  • What are the patterns among our variables?

This understanding will inform our next steps:

  • What method of analysis / model is appropriate?


Once our analysis is complete, visualizations are a powerful way to communicate our findings and tell a story.

Template File

Download a template .Rmd of this activity. Put the file in a Day_03 folder within your COMP_STAT_112 folder.

  • This .Rmd only contains exercises that we’ll work on in class (no assignment due).

Analysis of Graphics

There is not one right way to visualize a data set.

Let’s try some critical analysis on specific examples.


Identify the following:

  1. the story the graphic is aiming to communicate to the audience
  2. effective features of the graphic
  3. areas for improvement

Think and then discuss with group. Be prepared to share.

Example 1

Source: http://viz.wtf/

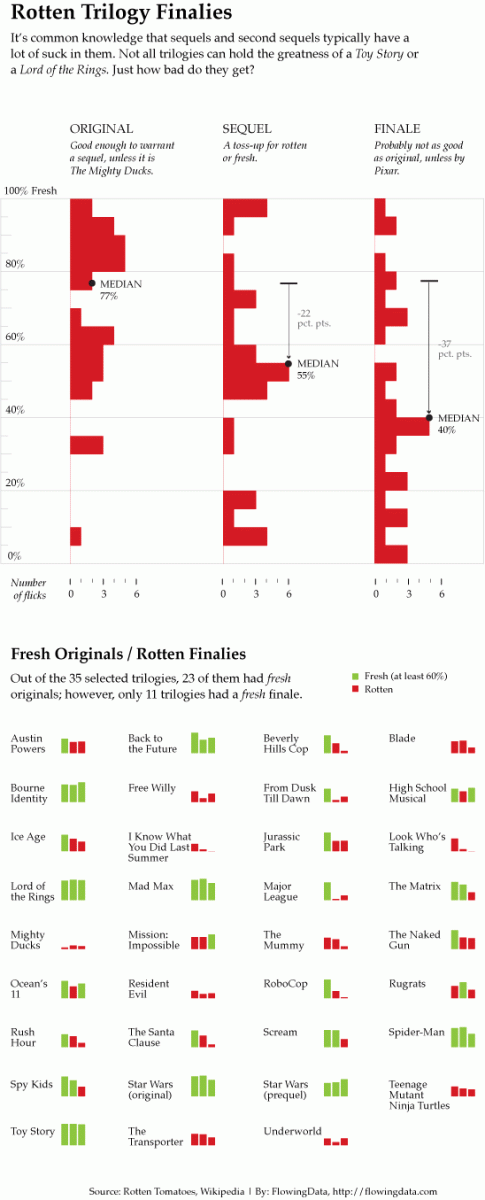

Example 2

Source: N. Yau, *Visualize This*, 2011, p. 223-225.

Example 3

Source: B. Heggeseth, Tidy Tuesday (9/6)

Properties of Effective Visualizations

  1. Tells a Story

Graphics are designed by the human expert (you!) in order to reveal information that’s in the data.

You should clearly identify what story you want the graphic to tell to the audience, and double check that this story is being told.

Properties of Effective Visualizations

  1. Ethical

Data visualizations have a potentially enormous influence on how data are used to make decisions across all areas of human endeavor. - Michael Correll

  • Visibility Make the invisible (labor, uncertainty, impact) visible

  • Privacy Collect data with empathy

  • Power Challenge structures of power

At a minimum, you should always:

  • Present data in a way that avoids misleading the audience (story should honestly represent data).

  • Always include your data source. Doing so attributes credit for labor, provides credibility to your work, and provides context for your graphic.

Properties of Effective Visualizations

  1. Good design to facilitate comparison

Good graphics make it easy for people to perceive things that are similar and things that are different.

Humans can perceive and compare nearby objects based on the aesthetics (roughly descending order of ability):

  1. Position
  2. Length
  3. Angle
  4. Direction
  5. Shape (but only a very few different shapes)
  6. Area
  7. Volume
  8. Shade
  9. Color

Visual Perception

  1. Visual perception is selective, and our attention is often drawn to constrasts from the norm.

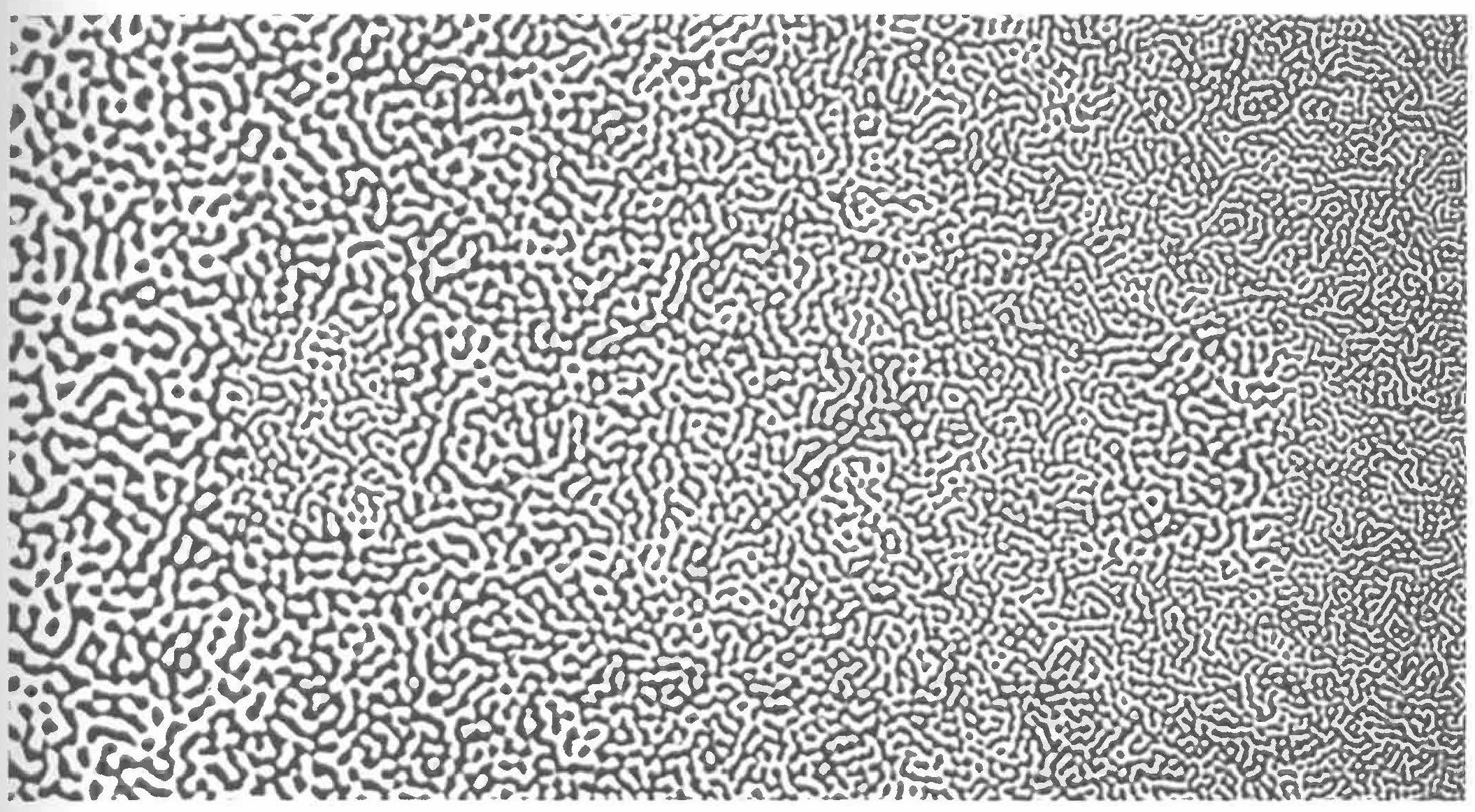

Our attention is drawn to contrasts to the norm. What stands out in this example image?, which is originally from C. Ware, Information Visualization: Perception for Design, 2004? Source: S. Few, Now You See It, 2009, p. 33.

Implication: We should design visualizations so that the features we want to highlight stand out in contrast from those that are not worth the audience’s attention.

Visual Perception

  1. Our eyes are drawn to familiar patterns. We see what we know and expect.

Do you see anything embedded in this rose image from coolbubble.com? Source: S. Few, Now You See It, 2009, p. 34.

Implication: Visualizations work best when they display information as patterns that familiar and easy to spot.

Visual Perception

  1. Memory plays an important role in human cognition, but working memory is extremely limited.

Implication: Visualizations must serve as external aids to augment working memory. If a visualization is unfamiliar, then it won’t be as effective.

Other Design Tips

  • Put yourself in a reader’s shoes when you design data graphics. What parts of the data need explanation? We can minimize ambiguity by providing guides, label axes, etc.
  • Data graphics are meant to shine a light on your data. Try to remove any elements that don’t help you do that. That is, eliminate “chart junk” (distracting and unnecessary adornments).
  • Vary color and stroke styles to emphasize the parts in your graphic that are most important to the story you’re telling
  • It is easier to judge length than it is to judge area or angles
  • Be thoughtful about how your categories (levels) are ordered for categorical data. There may be a natural ordering
  • Pie charts, donut charts, and 3D are evil

Basic Rules for Constructing Graphics

  • Each quantitative variable requires a new axis.
  • Each categorical variable requires a new way to “group” the graphic (eg: using colors, shapes, separate facets, etc to capture the grouping).
  • For visualizations in which overlap in glyphs or plots obscures the patterns, try faceting or transparency.

Exercise

Exercise 2. Consider one of the more complicated data graphics from Exercise 2.5:

  1. What story does the data graphic tell? What is the main message that you take away from it?

  2. Can the data graphic be described in terms of the Grammar of Graphics (frame, glyphs, aesthetics, facet, scale, guide)? If so, please describe.

  3. Critique and/or praise the visualization choices made by the designer.

  • Do they work?
  • Are they misleading?
  • Thought-provoking?
  • Brilliant?
  • Are there things that you would have done differently? Justify your response.

After Class

  • Work on finishing Assignment 2 (due tomorrow @ 11:59pm)
  • Check out optional readings!
  • Tidy Tuesday 2 (should be posted by tomorrow)
